Beale Street Audio | 4” In-Wall 2-Way Speaker | IWLCR4-BB

Beale Street Audio | 4” In-Wall 2-Way Speaker | IWLCR4-BB

Please allow 3-5 Days for delivery
Regular price £549.00
Regular price Sale price £549.00
Save Awaiting Stock
VAT included. Free standard shipping on all orders over £90
View full details


Dimensions and weight

Weight (KG) - 3.87

Dimensions (Speaker) (mm) - 382 x 238 x 97

Dimensions (Speaker cutout) (mm) - 355 x 211.5

Dimensions (Speaker grille) (mm) - 237.5 x 381.5

Dimensions (Depth) (mm) - 100

Technical Specification

Speaker Type – In Wall 2-Way

Woofer – Dual 4" Carbon Fiber

Tweeter – 1″ Titanium

Frequency – 86 Hz – 25 kHz

Sensitivity – 92db

Butyl Rubber Surround

Sonic Vortex® Ported Transmission Line

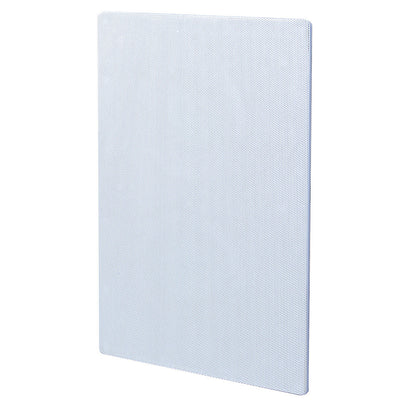

Magnetic Bezelless Grille – White; paintable

Impedance – 6Ω

Connector Type – Gold Spring Push Terminal

Power Handling – 5-120W

Frequency/Crossover Setting - Full Range Only

The Beale Street In-Wall 2-way Speaker (IWLCR4) provides great sound quality with a smaller depth.

The Beale Street in-wall speaker and subwoofers offer a range of advantages which help them overcome of the challenges often faced by in-ceiling / in-wall speakers including:

- More bass in less space
- Built-in protection for components
- Control of the sound
- No back box problems
- Reduced sound leakage
- Sonic Vortex technology

Sonic Vortex Technology

Beale Street Audio Sonic Vortex® technology generates rich, deep bass and effortless clarity from what most people would call a ‘back box’, but is not. It is actually a compact, integrated tuned enclosure. This patented technology is a ‘twist’ on Ported Transmission Line design, that optimizes air movement to produce astonishing sound. The enclosure also keeps sound from bleeding to other rooms while adding 6 to 9dB boost in mid-lower bass.

Beale Street Audio

Acquired by Vanco in 2017, Beale Street Audio™ is renowned for its unique architectural speaker line featuring the award-winning, patented Sonic Vortex® technology. Beale Street Audio products defy physics by providing an unprecedented level of deep, rich, bass output and room energizing dynamics with a shocking 6 to 9 dB boost over traditional in-wall and in-ceiling loudspeakers that utilize the same enclosure size. The full Beale Street Audio line is available solely through distribution and includes a variety of in-ceiling and in-wall speakers, subwoofers, amplifiers and accessories suitable for any application, all at extremely competitive prices.
