Condition - BRAND NEW, SEALED

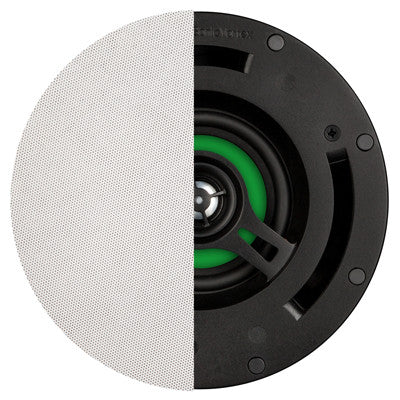

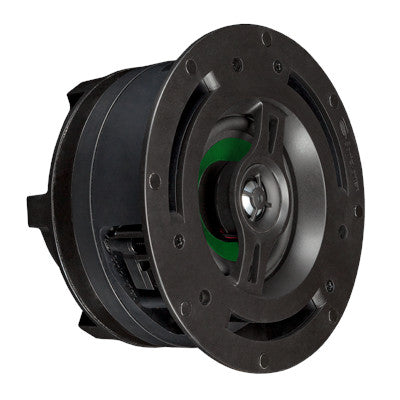

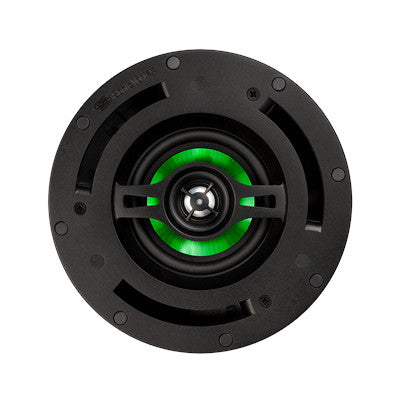

Beale Street Audio | 4” In-Ceiling / In-Wall Speaker | ICW4-MB
Beale Street Audio | 4” In-Ceiling / In-Wall Speaker | ICW4-MB
Please allow 3-5 Days for delivery
Share
Specifications
Dimensions and weight
Weight (KG) - 1.75
Dimensions (Speaker cutout) (mm) - 162
Dimensions (Speaker grille) (mm) - 186
Dimensions (Depth) (mm) - 97
Technical Specification
Speaker Type – In-Ceiling/In Wall 2-Way
Woofer – 4" Fluted Injected Poly
Tweeter – 3/4″ Aluminium Dome
Frequency – 68 Hz – 24 kHz
Sensitivity – 89db
Butyl Rubber Surround
Sonic Vortex® Ported Transmission Line
Magnetic Bezelless Grille – White; paintable
Impedance – 8Ω
Connector Type – Gold Spring Push Terminal
Tweeter - Pivoting
Power Handling – 5-80W
Frequency/Crossover Setting - N/A
EZBracket Size – J
Highlights – Under 4" Depth (97mm)

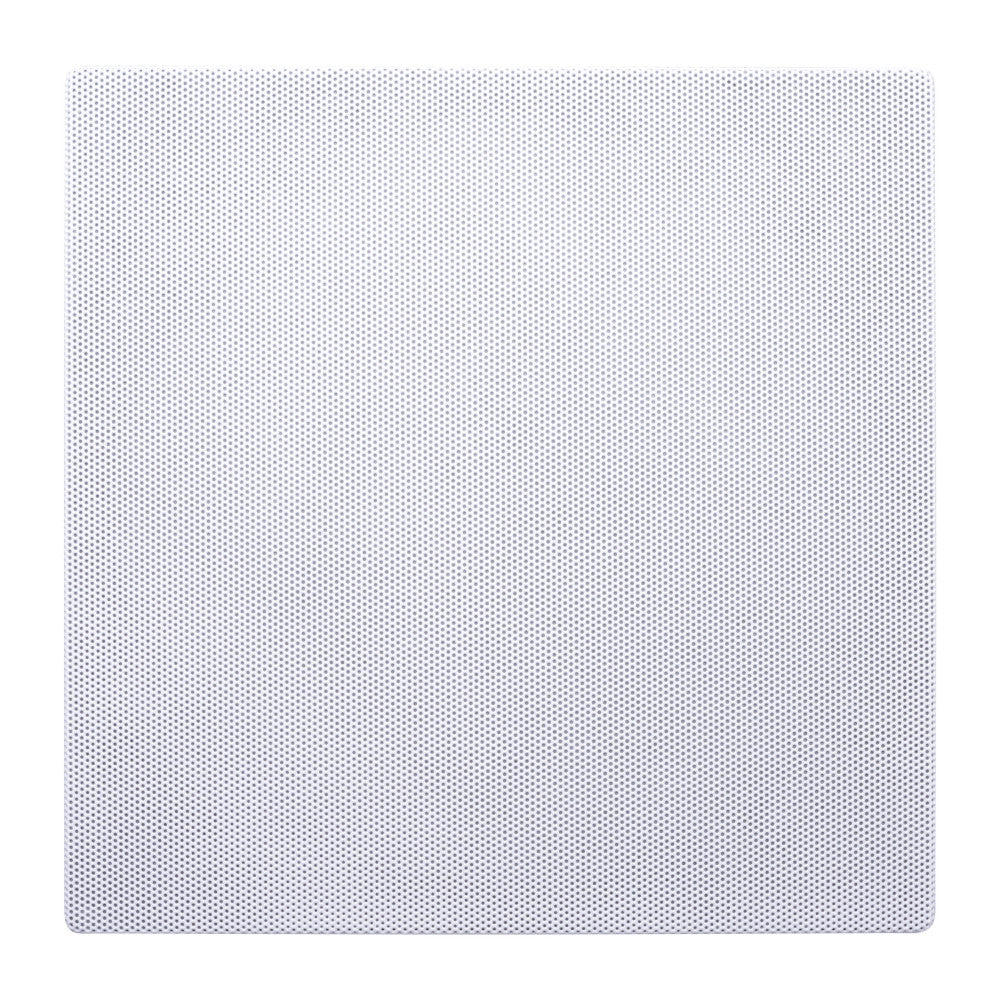

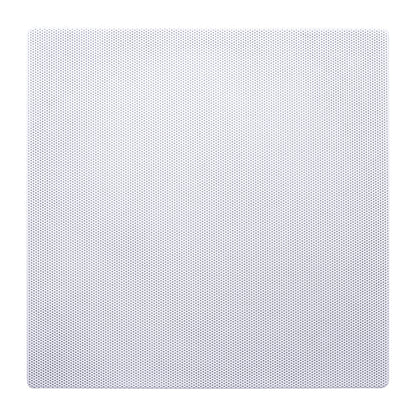

Includes round and square grills
The Beale Street In-Ceiling/In-Wall Speaker (ICW-MB) provides great sound quality with a smaller depth.
The Beale Street in-ceiling / in-wall speaker and subwoofers offer a range of advantages which help them overcome of the challenges often faced by in-ceiling / in-wall speakers including:
- More bass in less space
- Built-in protection for components
- Control of the sound
- No back box problems
- Reduced sound leakage
- Sonic Vortex technology
Sonic Vortex Technology
Beale Street Audio Sonic Vortex® technology generates rich, deep bass and effortless clarity from what most people would call a ‘back box’, but is not. It is actually a compact, integrated tuned enclosure. This patented technology is a ‘twist’ on Ported Transmission Line design, that optimizes air movement to produce astonishing sound. The enclosure also keeps sound from bleeding to other rooms while adding 6 to 9dB boost in mid-lower bass.
Beale Street Audio
Acquired by Vanco in 2017, Beale Street Audio™ is renowned for its unique architectural speaker line featuring the award-winning, patented Sonic Vortex® technology. Beale Street Audio products defy physics by providing an unprecedented level of deep, rich, bass output and room energizing dynamics with a shocking 6 to 9 dB boost over traditional in-wall and in-ceiling loudspeakers that utilize the same enclosure size. The full Beale Street Audio line is available solely through distribution and includes a variety of in-ceiling and in-wall speakers, subwoofers, amplifiers and accessories suitable for any application, all at extremely competitive prices.
