Condition - BRAND NEW, SEALED

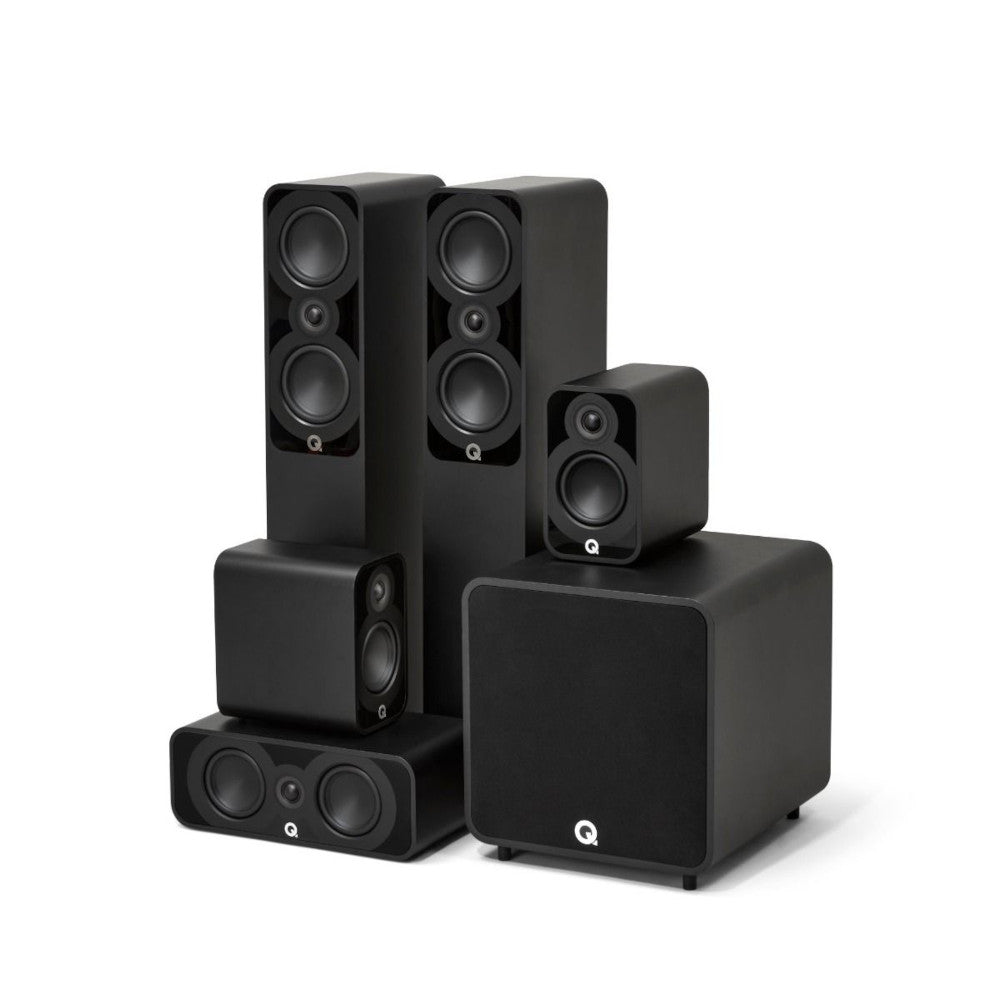

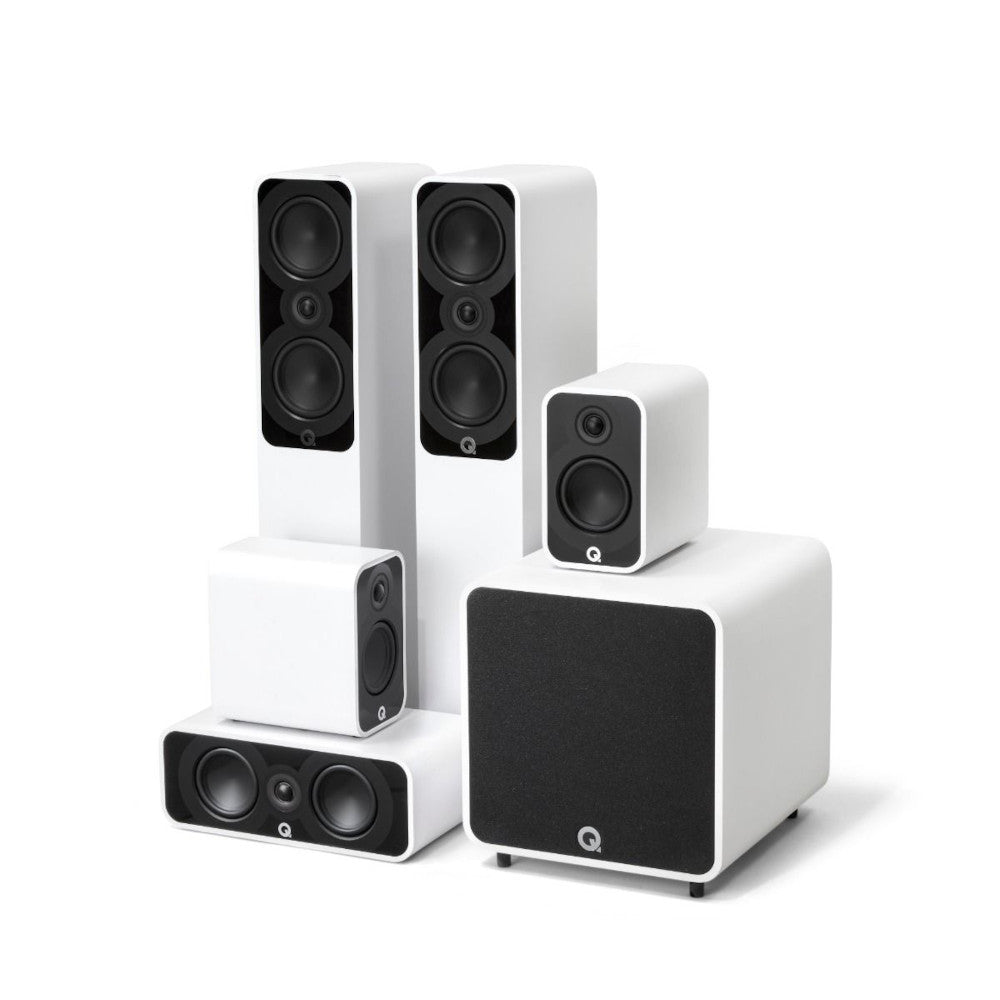

Q-Acoustics | 5040 5.1 Speaker Package
Q-Acoustics | 5040 5.1 Speaker Package
Please allow 1-3 working days for delivery
Share
Specifications
Specifications
5040 Freestanding Speakers
- Bass unit 2 x 125 mm (5.0 in)
- Treble unit 1 x 25 mm (1.0 in)
- Frequency response(-6dB)39 Hz - 30 kHz
- Nominal impedance 6 Ω
- Minimum impedance3.0 Ω
- Sensitivity (2.83V @ 1kHz)91.5 dB/w/m
- Recommended amplifier power25-150 W
- Crossover frequency2.5 kHzz
- Effective volume27 L
5010 Bookshelf Speakers
- Bass unit 1 x 110 mm (4.5 in)
- Treble unit 1 x 25 mm (1.0 in)
- Frequency response(-6dB) 56Hz - 30 kHz
- Nominal impedance 6 Ω
- Minimum impedance 3.3 Ω
- Sensitivity (2.83V @ 1kHz)86.3 dB/w/m
- Recommended amplifier power 15-90 W
- Crossover frequency 2.5 kHz
- Effective volume 5.0 L
- Dimensions (per loudspeaker / HxWxD) 264 x 160 x 263 mm (10.4 x 6.3 x 10.4 in)
- Weight (per loudspeaker) 5.6 kg (12.3 lbs)
5090 Centre Speaker
- Bass unit 2 x 110 mm (4.5 in)
- Treble unit 1 x 25 mm (1.0 in)
- Frequency response (-6dB)57 Hz - 30 kHz
- Nominal impedance 6 Ω
- Minimum impedance 3.2 Ω
- Sensitivity (2.83V @ 1kHz)90.5 dB/w/m
- Recommended amplifier power 25-150 W
- Crossover frequency 2.1 kHz
- Effective volume 7.8 L
- Dimensions (per loudspeaker / HxWxD) 164 x 430 x 243 mm (6.5 x 16.9 x 9.6 in)
- Weight (per loudspeaker) 8.5 kg (18.7 lbs)
B12 Subwoofer
- Drive Unit: 305mm (12in) high-excursion and stiffness paper, straight-sided cone.
- Peak Amplifier Power: 440 W
- Continuous Amplifier Power: 220 W
- Power type: Class D
- Frequency range: 28 Hz - 300 Hz
- Crossover frequency range: 40Hz – 250Hz
- Input impedance: 13 kΩ
- Input sensitivity: 150 mV
- Enclosure type: Infinite baffle
- Enclosure material: MDF
- Dimensions (H / W / D): 400 x 400 x 446 mm (15.7 x 15.7 x 17.6 in)
- Weight: 47.40 lbs / (21.5 kg)
Box Contents
- 2 x 5040 freestanding speakers with grilles
- 2 x 5010 bookshelf speakers with grilles
- 1 x 5090 centre speaker with grille
- 1 x B12 speaker subwoofer
The big screen never sounded bigger than through the 5040 5.1 set-up - and a surround-sound system never looked more minimal and sophisticated while it’s rocking your multi-channel world. A blockbuster home cinema sound with a Hollywood A-list presence.
Mid/bass driver design
At the heart of the ground-up mid/bass driver design is the C3 Continuous Curved Cone™. The cone’s geometry requires good motor strength for optimal performance. Substantial magnets are coupled to large voice coils to increase motor strength - the result is a 50% increase in power handling and control over a comparable driver with 25.4 mm voice coil. The result is an improvement in the dynamic range of the speaker, especially in the bass region.
High-frequency driver design
Based on the tweeter design principle found in the newest Concept series, the high frequency driver unit is hermetically sealed and mechanically isolated (floating) from the baffle to prevent internal pressure modulations from within the cabinet and adjacent mid/bass driver. The inner chamber is also carefully vented for lower distortion, with a lower crossover point for seamless integration through the crossover region.
C3 Continuous Curved Cone™
A genuine advancement in elements of mid/bass driver design, the C3 Continuous Curved Cone™ profile is the result of extensive research and expert engineering to combine the bass performance benefits of a traditional straight conic cone with the high/mid-range frequency control of a flared cone.
By creating a single, smooth, continuous curve profile, the advantages are clear. Its excellent dispersion, alongside its well-controlled frequency response and reduced harmonic distortion, enables smoother integration with the tweeter. Deep bass dynamics are also superior, with this and tighter, damped low-end sound allowing more flexibility in in placement of speakers near the wall boundaries of the listening room.
